Built To Fly

Oiz is an uncompromised race machine that looks as good as it rides. Modern geometry, advanced construction, and efficient suspension mean more grip, and better control, inspiring you to attack on every climb and get right off the brakes on today's most challenging tracks.
Imagen de fondo

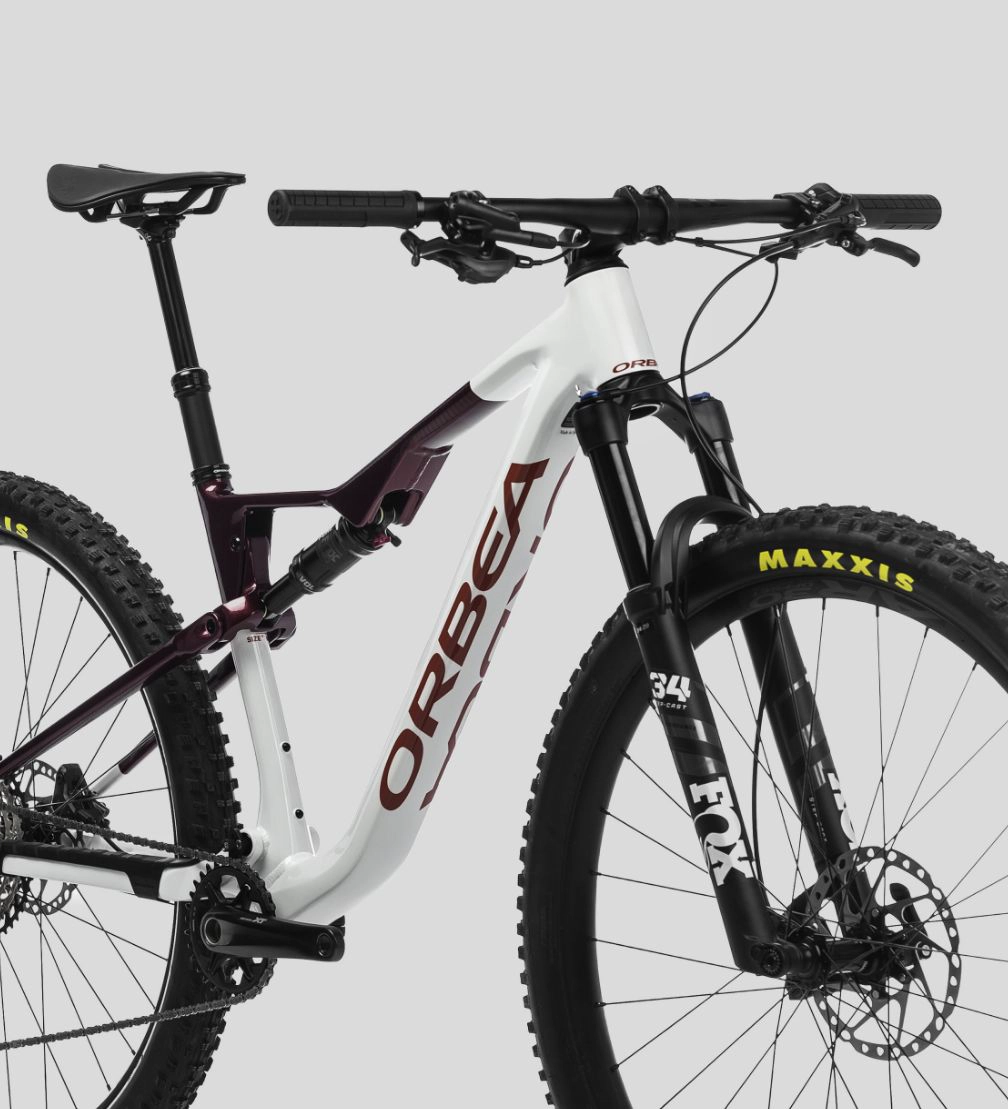

Race Ready Geometry

A steep seat tube and lower stack puts you in the driving seat, in full control of your ride. The longer reach, designed around a 60-90mm stem, offers stability on the descents while maintaining a weighted front wheel for attacking on the climbs and corners.
Imagen de fondo

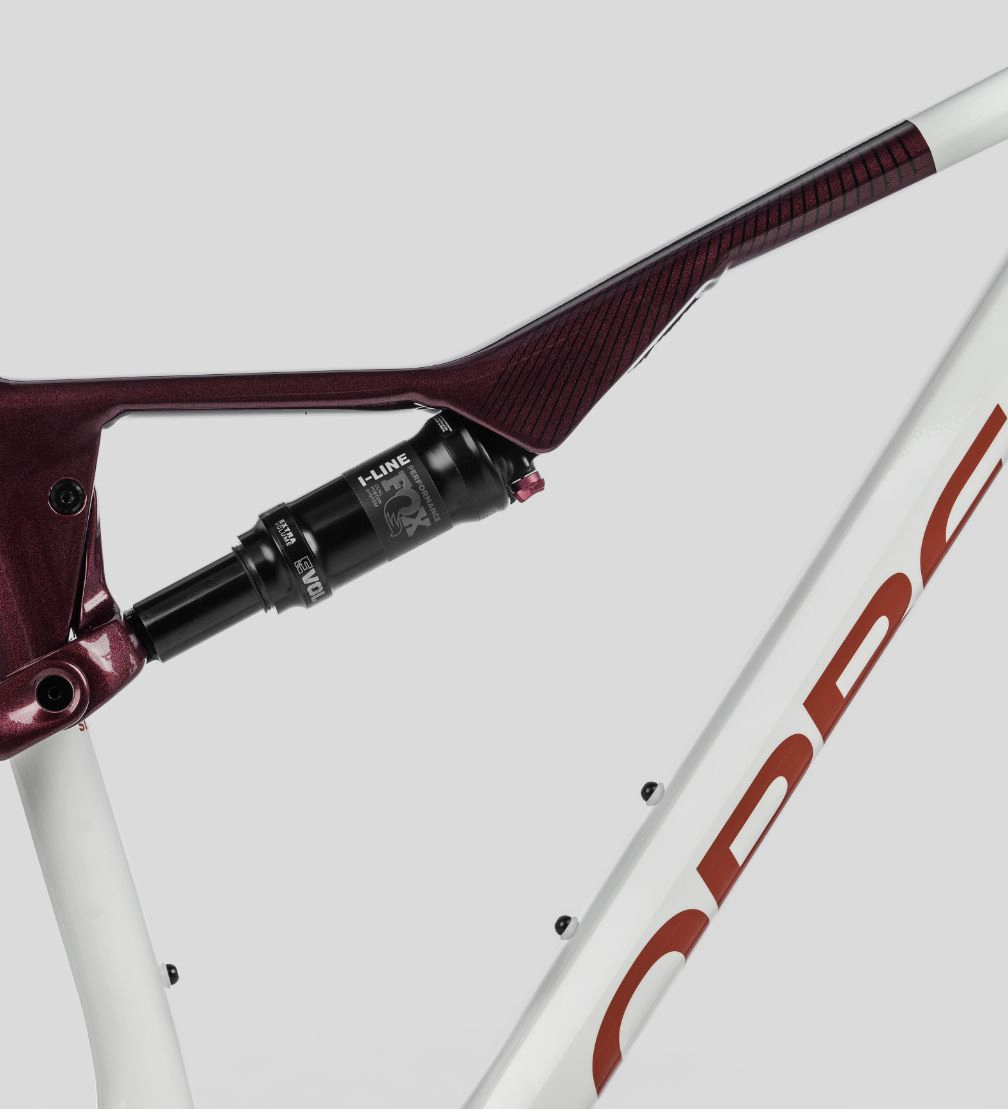

Efficient Suspension

Designed from the start around 120mm of race-tuned suspension, means Oiz offers unbeatable confidence and efficiency. Attack on the climbs and drop the competition on the descents.
Imagen de fondo

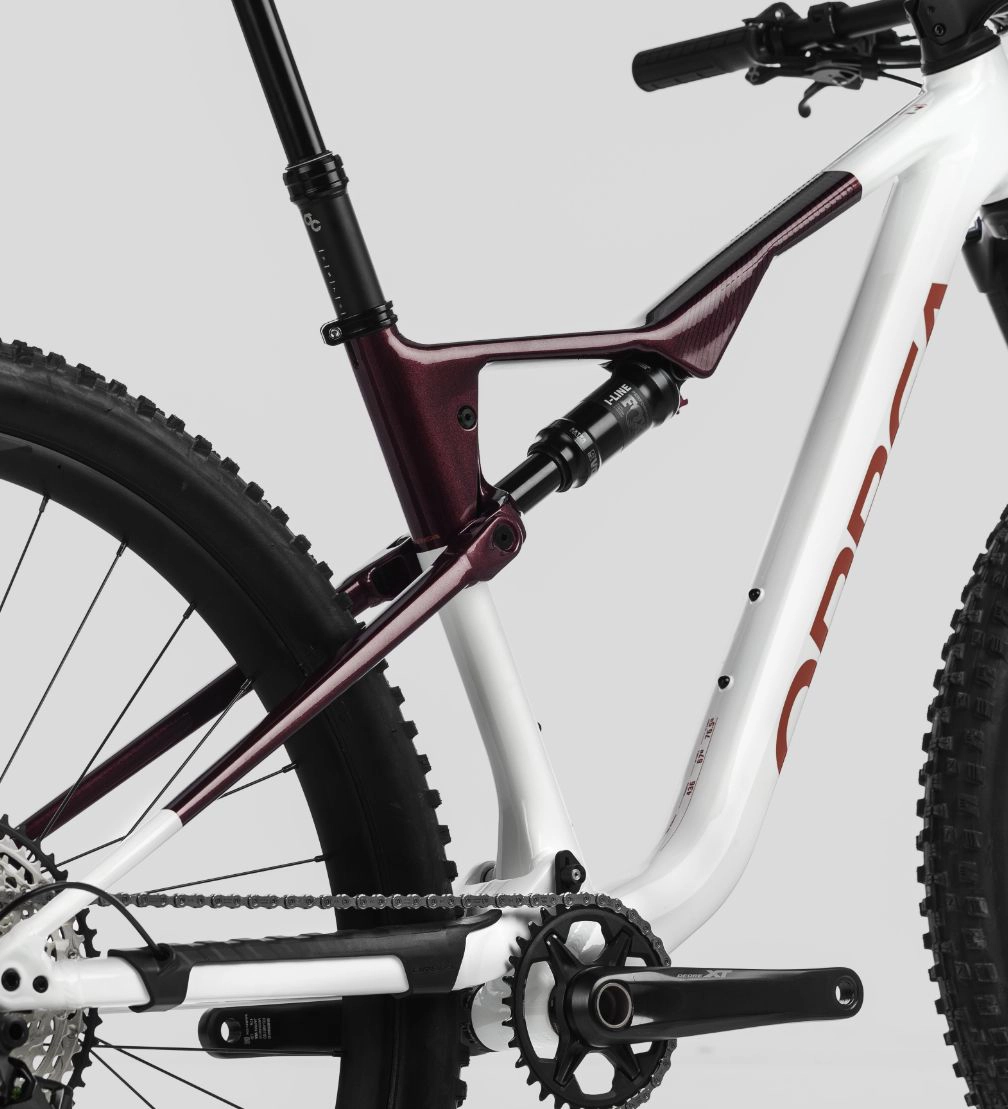

Tuned rigidity

For a bike to have the lightning reflexes and efficiency of a true XC race bike it needs to be light and stiff.
Imagen de fondo

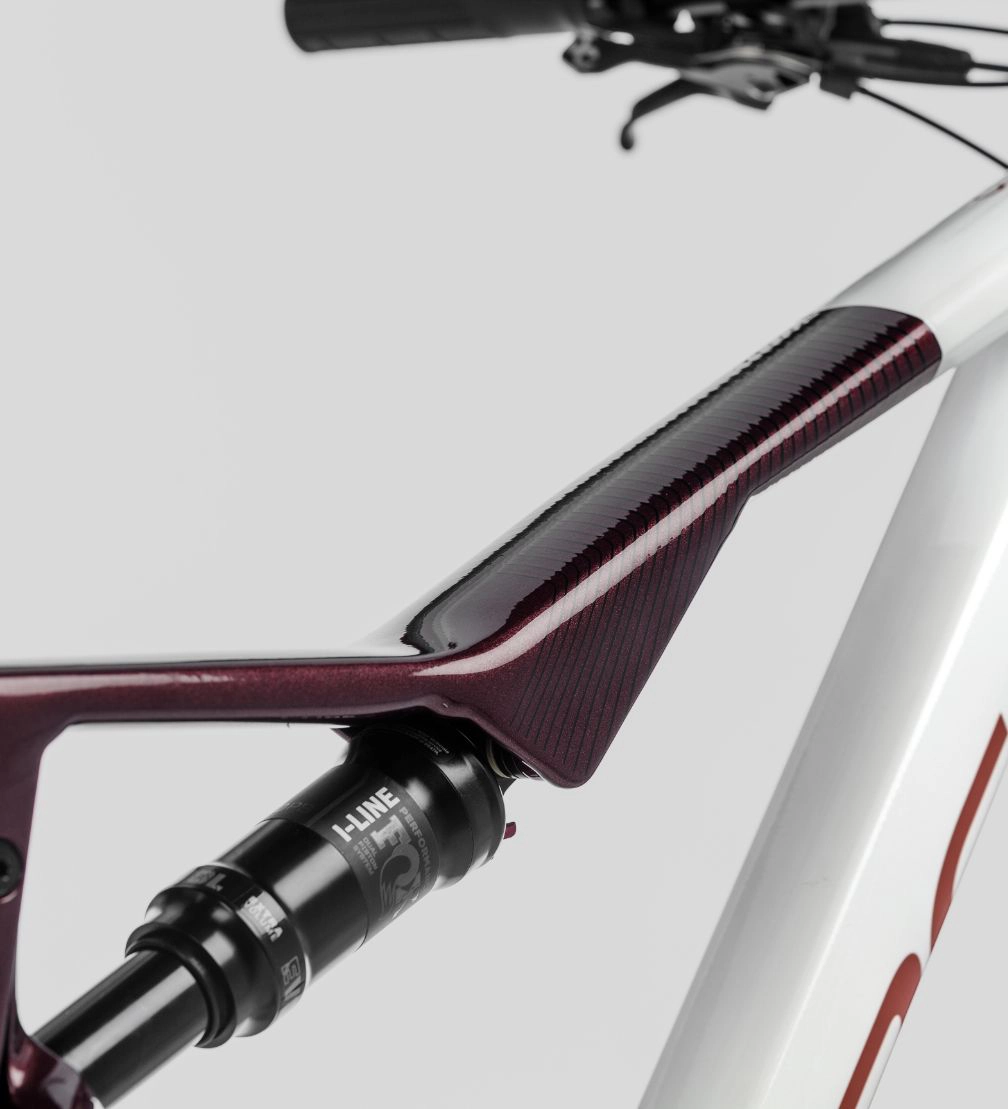

The most direct shock lockout routing

Our patented I-line is simply the sleekest, most direct, most integrated shock lock-out on the market. The shock lockout cable take the inside line all the way to the remote lever, meaning less cable, less dirt and less friction.
Imagen de fondo

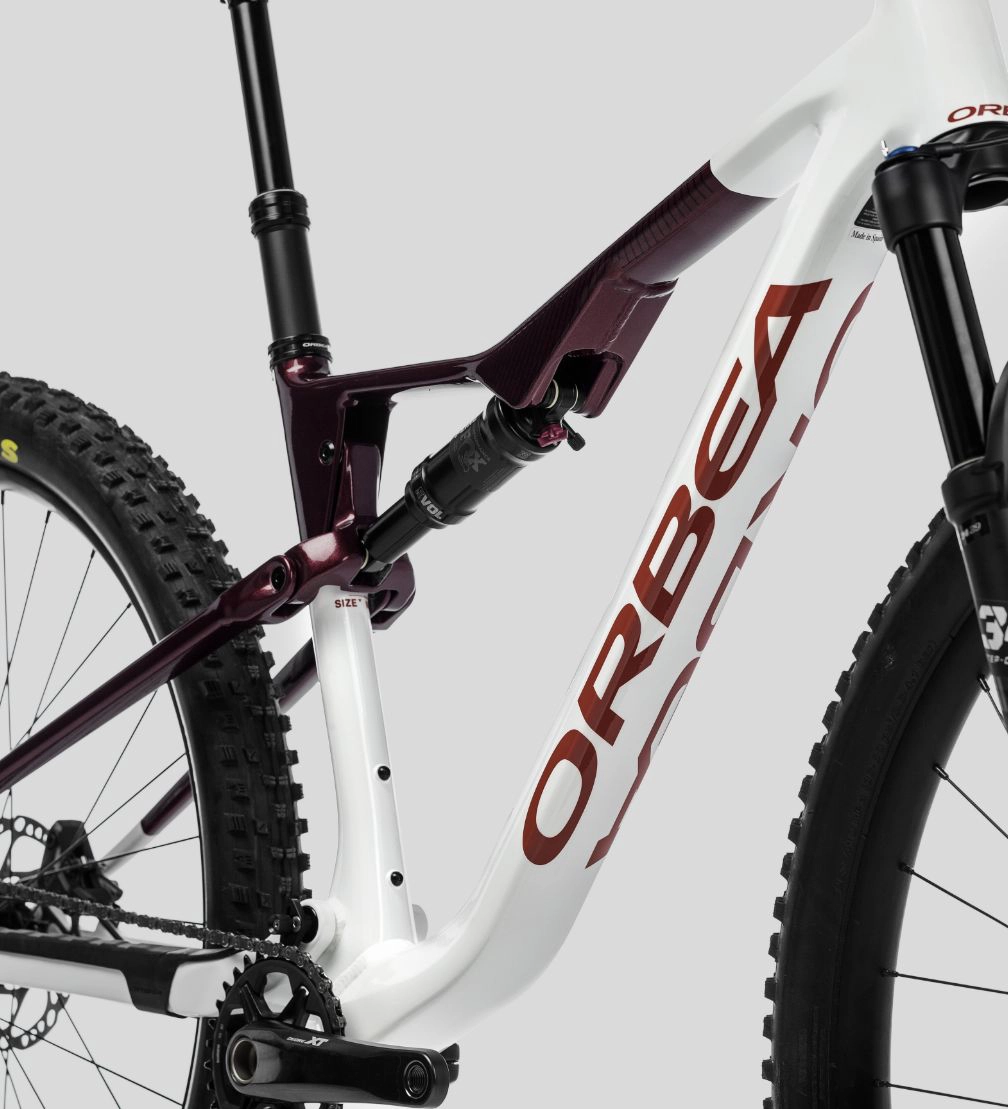

High Polish Alloy

Our high polished alloy is simply the best aluminium frame you can buy, with the bonus of that carbon-look.

Frameset

Fork

Fox 34 Float SL Performance 120, Grip, Remote Push to Lock, QR15x110

Frame

Orbea Oiz Hydro High Polished, Alloy link, Boost, BSA, SIC, UFO, I-Line shock

Shock

Fox Float SL Performance 120mm Remote Push-lock Evol custom tune190x45mm

Headset

Alloy 1-1/2", Black Oxidated Bearing

Drivetrain

Crankset

Shimano MT 32t

Shifters

Shimano Deore

Cassette

Shimano CS 10-51t 12-Speed

Rear derailleur

Shimano XT SGS Shadow Plus

Chain

Shimano M6100

Cockpit

Handlebar

OC Mountain Performance MP30, Width 760

Stem

OC Mountain Performance MP21, -6º

Brakes

Brakes

Shimano MT410 Hydraulic Disc

Brakes Configuration

N/A

Wheels

Wheels

Alloy, 26c, 28H, TLR

Tyres

Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown

Components

Saddle

Fizik Vento Argo X5 Alluminium 140mm

Seatpost

OC Mountain Control MC22, 31.6mm, Dropper

Remote lockout

OC Squidlock MP11, Suspension + Dropper

Size guide by height
Size
Height
S
M
L
XL
* Approximate measurements

Ergonomics chart by size
Size Stem Dropper Seatpost Crank Handlebar
Height
S 60 125 170 760
M 75 125 170 760
L 75 150 175 760
XL 90 150 175 760
* Approximate measurements

Size Stem Dropper Seatpost Crank Handlebar
Height
S 60 125 170 760
M 75 125 170 760
L 75 150 175 760
XL 90 150 175 760
* Approximate measurements

Size Crank
Height
S 170
M 170
L 175
XL 175
* Approximate measurements

Size Handlebar
Height
S 760
M 760
L 760
XL 760
* Approximate measurements

Size Stem Handlebar
Height
S 40 800
M 50 800
L 50 800
XL 50 800
* Approximate measurements

Size Stem
Height
S 60
M 75
L 75
XL 90
* Approximate measurements

Size Dropper Seatpost
Height
S 125
M 125
L 150
XL 150
* Approximate measurements

Oiz H10
Geometry chart by size
Concept S M L XL
Seat Tube (C-T)
410 432 460 510
Top Tube (EFF)
568 594 619 645
Head Tube
90 95 105 115
Chainstay
436 436 436 436
BB Height
333 333 333 333
42 42 42 42
Wheelbase
1142 1169 1195 1223
Head Angle
67º 67º 67º 67º
Seat Angle
76.5º 76.5º 76.5º 76.5º
Standover
729 743 746 743
Reach
425 450 472 496
Stack
596 600 610 619
Fork Length
531 531 531 531
Rake
44 44 44 44
