Expand your horizons

Urrun means “far” in the Basque language. Without a doubt, Urrun is an ebike to take you far and explore distant horizons, but the name holds more significance to us. Urrun is about the long journey we embarked upon with this bike and how far we have come.
Imagen de fondo

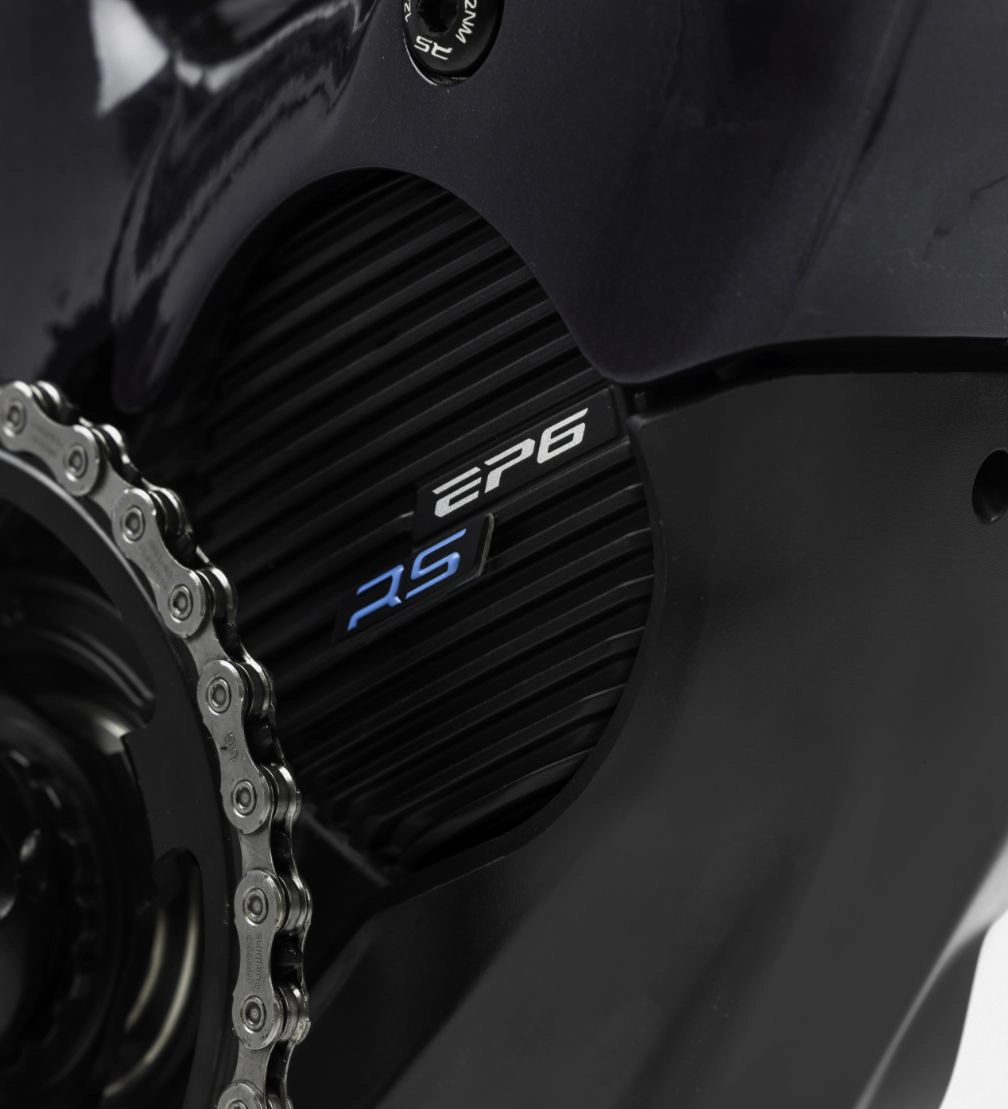

RS Gen 2 MC

Urrun uses the same Shimano EP6 RS Gen 2 MC system developed for the new Rise. This careful balance of simplicity, power and weight gives the most natural, elastic assistance and best in class battery range for the most epic adventures.
Imagen de fondo

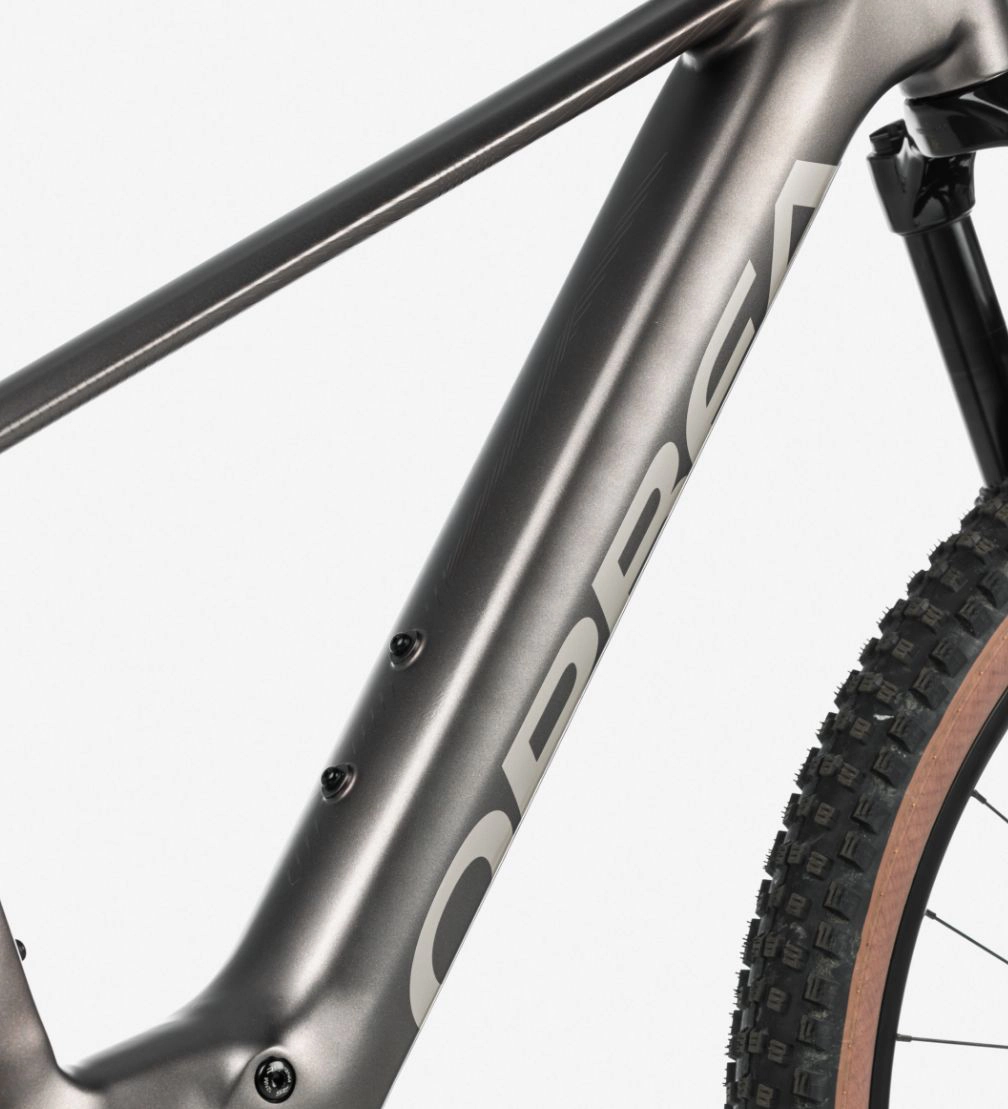

630Wh Means Maximum Range

We developed our own 630Wh battery using the latest cell technology. The result is more energy per gram than any other battery currently on the market. Packing more energy into a smaller space, with less weight, is key for lightweight e-bikes.
Imagen de fondo

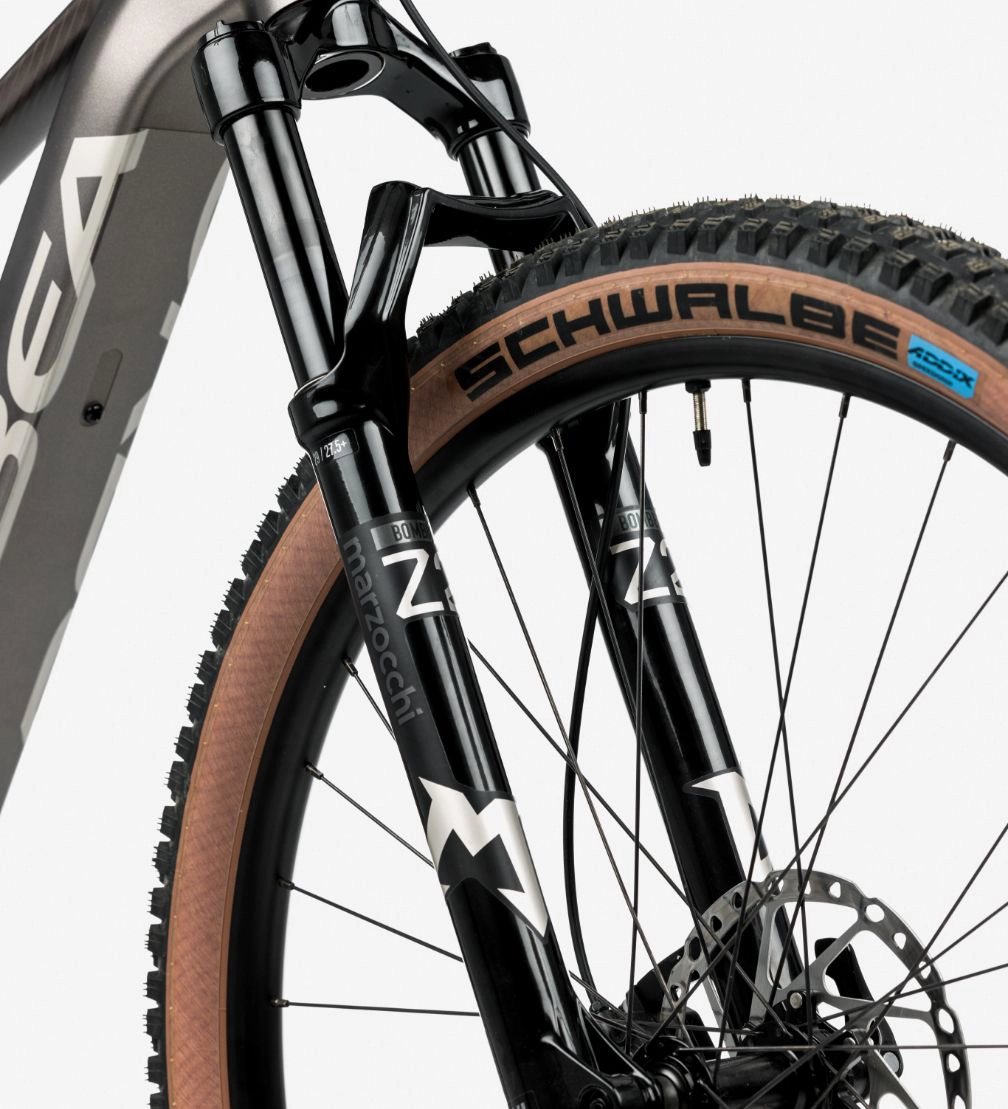

120mm Fork

Urrun is designed around a 120mm fork. The geometry is carefully considered to maximise control and give a bike which is fun and easy to control for every rider.
Imagen de fondo

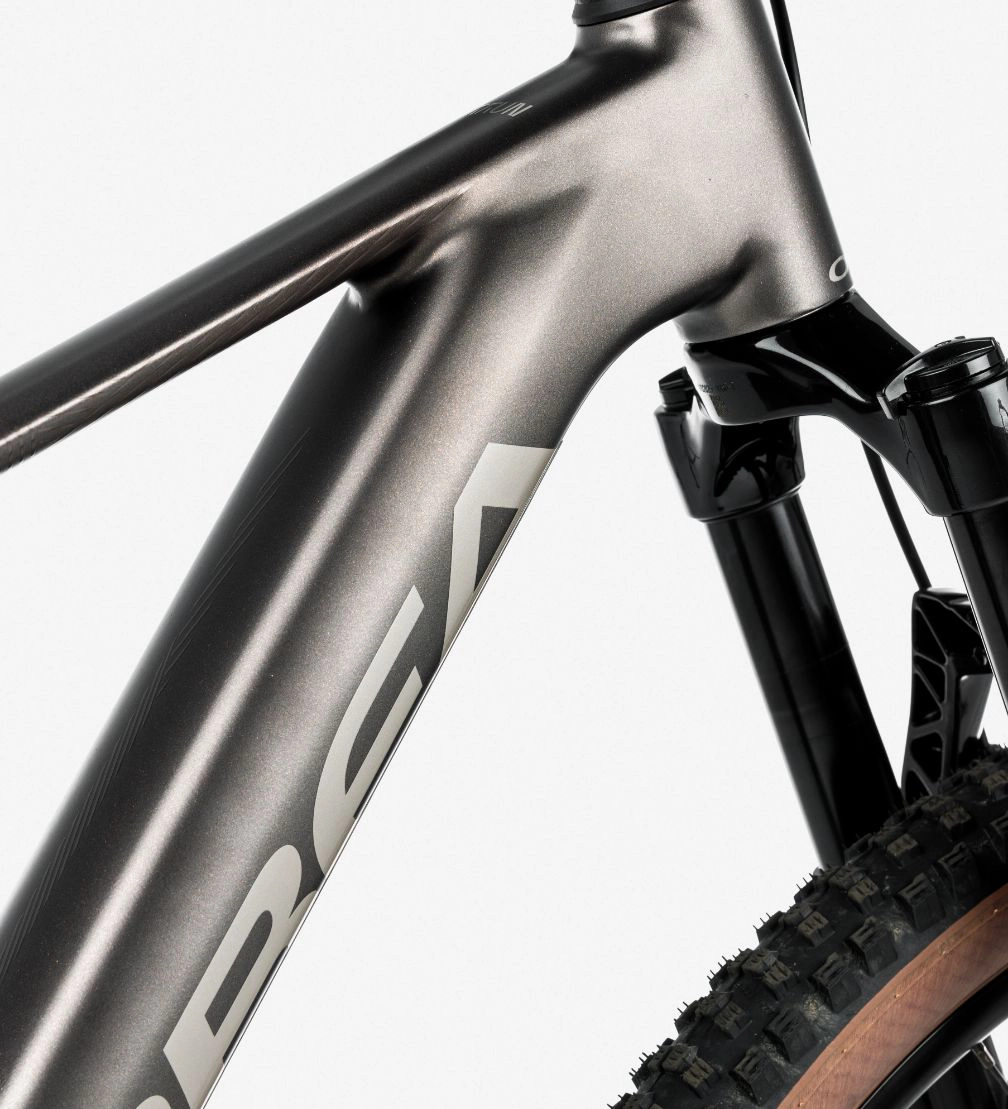

High Polished Alloy

Each weld on the main frame is polished smooth, matching the aesthetics of a monocoque frame.
Imagen de fondo

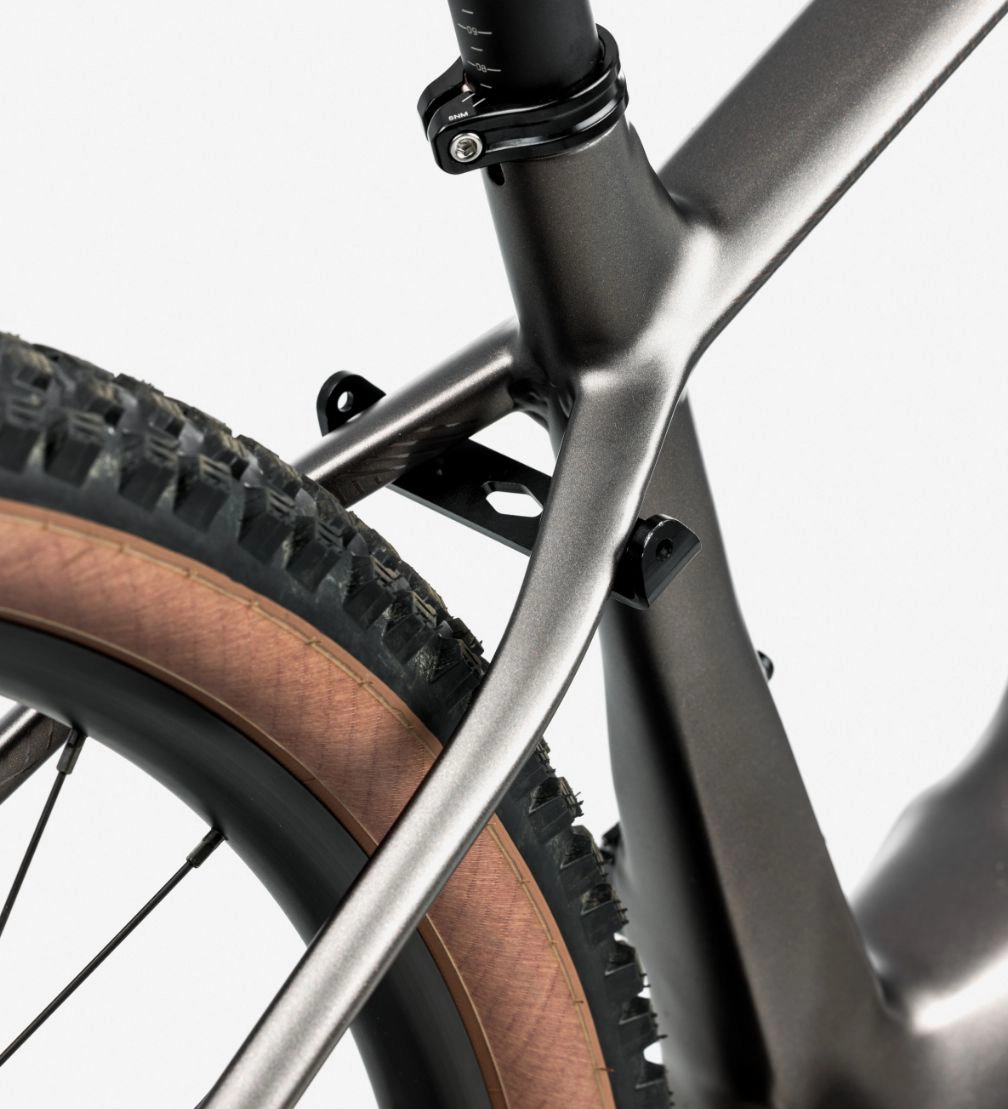

Custom Mounting Kit

Our custom mounting kit, which is included with every Urrun, makes it easy to mount accessories, or it can be totally removed to give the cleanest look for mountain bike adventures.

Frameset

Fork

Marzocchi Bomber Z2 120 QR15x110 E-Bike Optimized

Frame

Orbea Urrun

Headset

Alloy 1-1/2", Black Oxidated Bearing

Ebike

Motor

Shimano EP600 RS Gen2 MC

Battery

Orbea Internal 630Wh

Range Extender

N/A

Display

Shimano EN500

Charger

Orbea 2.Generation eBike Smart charger 42V/2-4A

Drivetrain

Chainring

Alloy EP8/6 32t

Crank

Shimano EN500

Shifters

Shimano Cues SL-U6000

Cassette

Shimano CS-LG400 11-50t 11-Speed

Rear derailleur

Shimano Cues U6000 GS Shadow

Chain

Shimano LG500

Chainguide

Orbea eBike chainguide

Cockpit

Handlebar

OC Mountain Control MC31, Rise20, Width 800

Stem

OC Mountain Control MC20, 0º

Brakes

Brakes

Shimano MT420 Hydraulic Disc

Brakes Configuration

N/A

Wheels

Wheels

Alloy, Tubeless, 29", 29c, 32H

Tyres

Schwalbe Smart Sam Performance, 29x2.35, Addix, Black

Components

Saddle

Fortune QF-3091

Seatpost

OC Mountain Control MC22, 31.6mm, Dropper

Seatpost Lever

Shimano SL-MT500 I-Spec EV

Accessories

Pedals

VP-537 Black

Mudguard

N/A

Lights

N/A

Quick stand

N/A

Size guide by height
Size
Height
S
M
L
XL
* Approximate measurements

Ergonomics chart by size
Size Stem Dropper Seatpost Crank Handlebar
Height
S 40 125 170 720
M 50 125 170 800
L 50 150 170 800
XL 50 150 170 800
* Approximate measurements

Size Stem Dropper Seatpost Crank Handlebar
Height
S 40 125 170 720
M 50 125 170 800
L 50 150 170 800
XL 50 150 170 800
* Approximate measurements

Size Crank
Height
S 170
M 170
L 170
XL 170
* Approximate measurements

Size Handlebar
Height
S 720
M 800
L 800
XL 800
* Approximate measurements

Size Stem
Height
S 40
M 50
L 50
XL 50
* Approximate measurements

Size Dropper Seatpost
Height
S 125
M 125
L 150
XL 150
* Approximate measurements

Urrun 20
Geometry chart by size
Concept S M L XL
Seat Tube (C-T)
400 420 450 500
Top Tube (EFF)
575 596 624 649
Head Tube
100 105 115 135
Chainstay
445 445 445 445
63 63 63 63
BB Height
314 314 314 314
Wheelbase
1149 1171 1200 1228
Head Angle
66 66 66 66
Seat Angle
74,5 74,5 74,5 74,5
Rake
44 44 44 44
Standover
775 780 791 814
Reach
410 430 455 475
Stack
625 630 639 657
Fork Length
534 534 534 534
