Start Small. Ride Big

It starts small. A seed of passion in a world that still feels enormous. A wobble, a laugh, a scraped knee, and it begins to grow. You look back to make sure they are right behind you. Until one day you no longer need to. And you realise this was never just about the ride. It was about how challenge and curiosity slowly became character and confidence.
Imagen de fondo

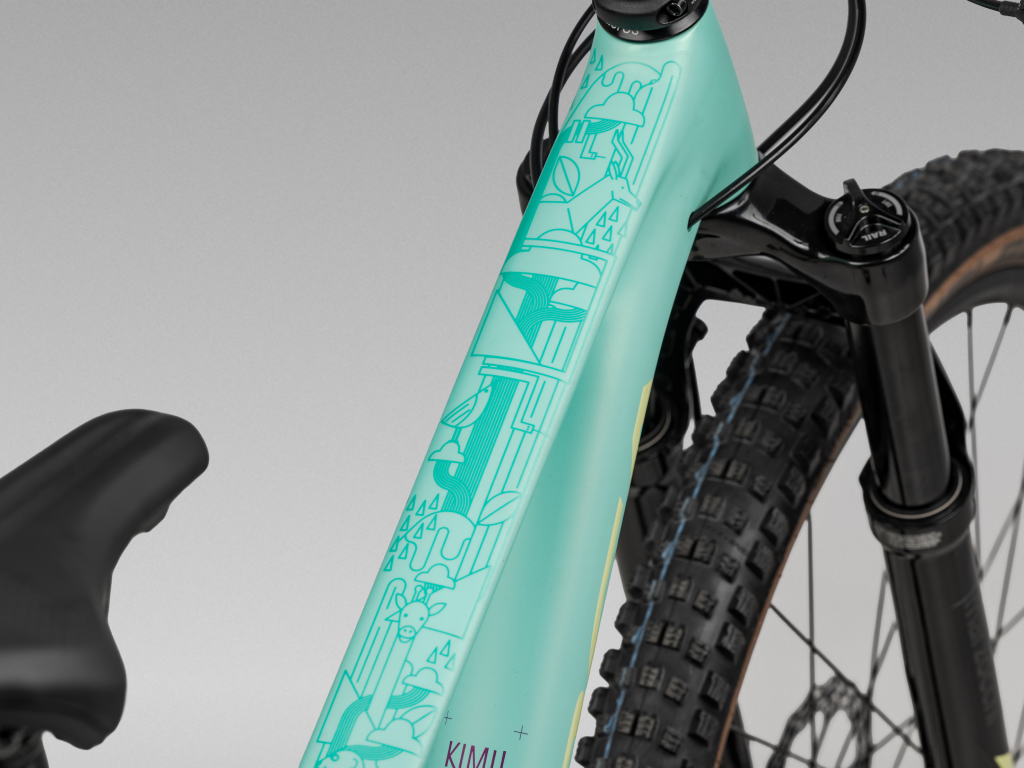

Personalized Protection

Thoughtful details like a signature nameplate, charming frame protectors and colorful matching stickers let riders make the bike their own while keeping it protected.
Imagen de fondo

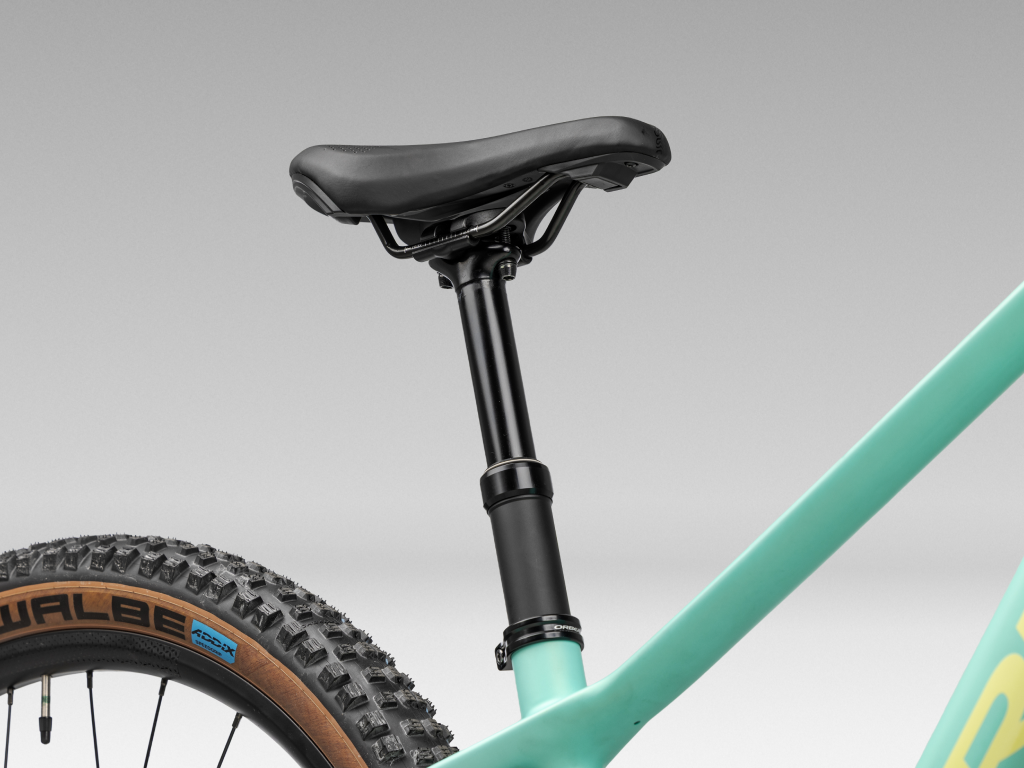

Low Pressure OC MC22 Dropper

The MC22 uses lower internal pressure for easy activation and saddle height control. It lengthens as the rider grows, maintaining proper function and fit over time. Initially with 100 mm of travel installed, expandable to 125 mm.
Imagen de fondo

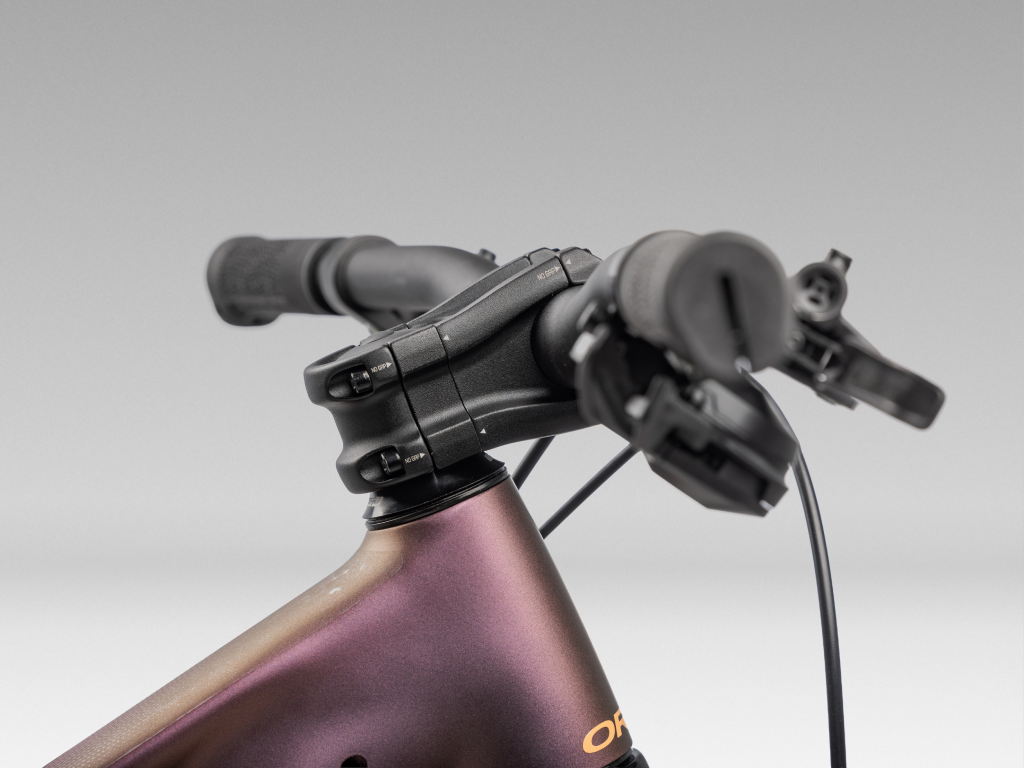

Growing Stem

Kimu features a stem that can be lengthened from 40 to 55 mm using an easily installable spacer. This extends the usable life of the bike and helps maintain a proper fit as riders grow.
Imagen de fondo

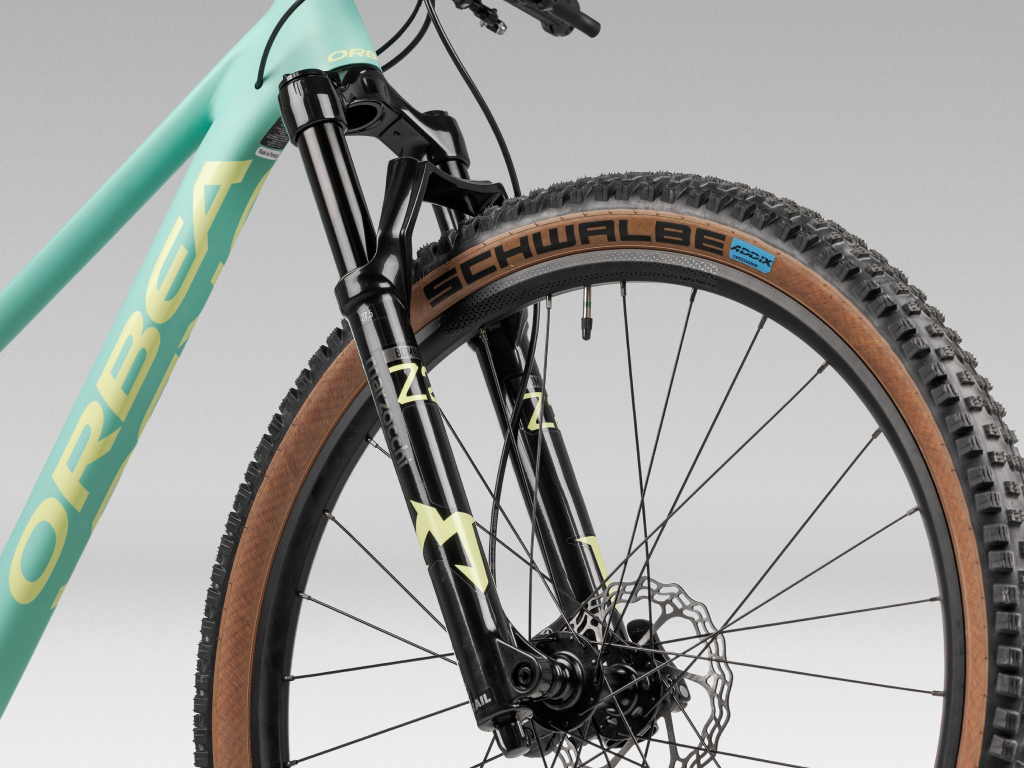

High-Performance Air Fork

Air suspension forks provide controlled, responsive support on rougher trails. Improved traction helps maintain composure as terrain becomes more technical.

Frameset

Fork

Marzocchi Bomber Z2 110 QR15x110

Frame

Orbea Kimu 27,5

Headset

Acros Alloy 1-1/8 - 1-1/2" Integrated

Drivetrain

Crankset

Alloy, 30t, 155mm

Shifters

Shimano Deore M6100 I-Spec EV

Cassette

Shimano CS-M6100 10-51t 12-Speed

Rear derailleur

Shimano Deore M6100 SGS Shadow Plus

Chain

Shimano M6100

Cockpit

Handlebar

MTB handlebar, Alloy, 31,6 Width 680

Stem

MTB custom stem, Alloy, +15mm Spacer

Brakes

Brakes

Shimano M6100 Hydraulic Disc

Wheels

Wheels

Alloy, 26c, 28H

Tyres

Schwalbe Wicked Will Evo TLE, 27x2.40 Super Race, Speed Grip, Addix, Black

Components

Saddle

SD 0.4 234x138mm

Seatpost

OC Mountain Control MC22, 31.6mm, Dropper, Low load

Seatpost Lever

Shimano SL-MT500 I-Spec EV

Accessories

Pedals

VP-229 Black with reflectors

Size guide by height
Size
Height
U
* Approximate measurements

Ergonomics chart by size
Size Stem Dropper Seatpost Crank Handlebar
Height
U 40 125 155 680
* Approximate measurements

Size Stem Dropper Seatpost Crank Handlebar
Height
U 40 125 155 680
* Approximate measurements

Size Crank
Height
U 155
* Approximate measurements

Size Handlebar
Height
U 680
* Approximate measurements

Size Stem
Height
U 40
* Approximate measurements

Size Dropper Seatpost
Height
U 125
* Approximate measurements

Kimu 27 H10

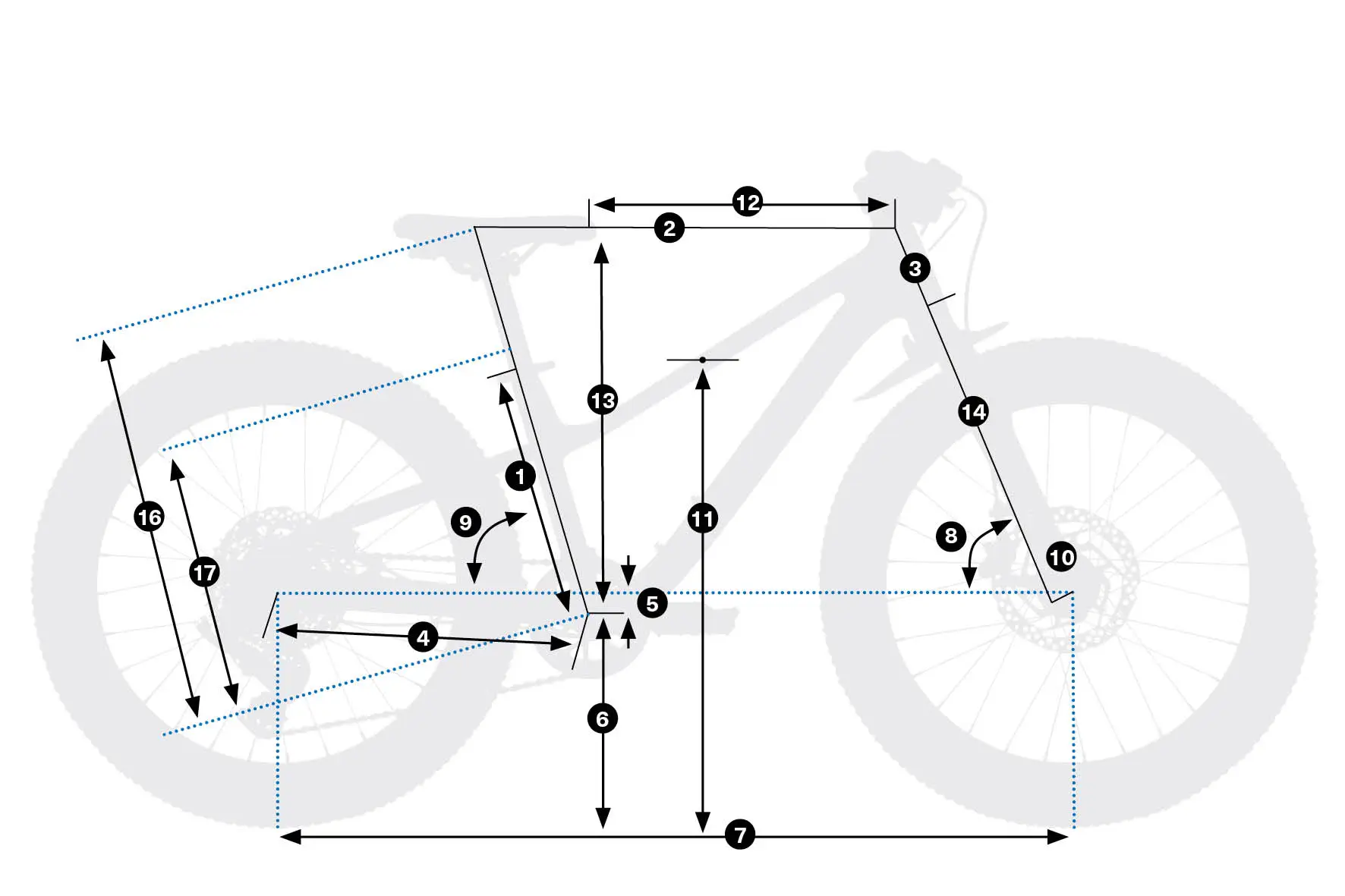

Geometry chart by size
Concept U
Seat Tube (C-T)
330
Top Tube (EFF)
543
Head Tube
90
Chainstay
420
45
BB Height
303
Wheelbase
1088
Head Angle
66,5º
Seat Angle
75,5º
Rake
44
Standover
683
Reach
390
Stack
582
Fork Length
514
Trail
-
Max seatpost height
630 (tija 125mm)
Min seatpost height
500 (tija 125mm)
