Rise Beyond. The Best Just Got Better.

More bike, Less E! A bike that works with you to turn every trail, feature, and corner into pure joy. Low weight and natural assistance mean lightning reflexes and fun handling that connect you to the trail.

85 Nm of Tuned, Natural Assistance

Choose RS or RS+ depending on the ride. RS gives 60 Nm for longer range, while RS+ gives 85 Nm. Rise is delivered in the RS+ mode.

Steep 'n' Deep

Drop the saddle right out of the way to give more space to move your body and even better control. With Rise you can fit up to a 240mm dropper. Long-travel droppers are the only way!

Two Battery Choices

A choice of 420 Wh or 630 Wh batteries let you choose the perfect battery for your trails. Or add the 210 Wh range extender for the longest rides.

Attitude Adjust

Our quick flip system lets you change the geometry in just a few seconds. You can steepen the geometry for the climbs and slacken it for maximum control on the descents.

Shimano EN600 Display

For riders who still want the ebike display you can add it via our configuration options. Our new MC11 stem mounts the display centrally, minimising the distraction.

Frameset

Fork

FOX 36 AWL - RAIL 160 mm

Frame

Orbea Rise LT Hydro 2025, 150mm travel, 29" wheels, Concentric Boost 12x148

Shock

FOX FLOAT PERFORMANCE 2pos-Adj

Headset

Alloy 1-1/2", Black Oxidated Bearing

Ebike

Motor

Shimano EP600 RS Gen2 MC

Battery

Orbea 630 Wh Battery

Range Extender

N/A

Display

N/A

Charger

Orbea 2.Generation eBike Smart charger 42V/2-4A

Remote

EN600-L

Drivetrain

Chainring

e*thirteen Helix Core e*spec Direct Mount 32T 55mm ChainLine

Crank

Shimano Steps EM600

Shifters

Shimano Deore M6100 I-Spec EV

Cassette

Shimano CS-M7100 10-51t 12-Speed

Rear derailleur

Shimano SLX M7100 SGS Shadow Plus

Chain

Shimano M6100

Chainguide

Orbea eBike chainguide

Cockpit

Handlebar

OC Handlebar MC31 Rise 20

Stem

OC Mountain Control 20, 0º

Computer Mount

OC Computer Mount CM-05

Brakes

Brakes

Shimano MT420

Rotors

Galfer Wave Rotors 203mm front / 180mm rear

Brakes Configuration

N/A

Wheels

Wheels

Race Face AR 30c Tubeless Ready (29"Front / 29"Rear)

Tyres

Maxxis Assegai 3C MaxxGrip EXO TR (Front) / Maxxis Minion DHR II (Rear)

Tyres

Maxxis Minion DHR II 2.40" WT FB 120 TPI 3C MaxxTerra Exo+ TR

Components

Seatpost

OC Mountain Control MC22

Seatpost Lever

Shimano SL-MT500 I-Spec EV

Grips

OC Lock On

Saddle

Fizik Terra Ridon X5

Accessories

Lights

N/A

Tools

N/A

Size guide by height
Size
Height
S
M
L
XL
* Approximate measurements

Ergonomics chart by size
Size Stem Dropper Seatpost Crank Handlebar
Height
S 35 170 165 800
M 40 200 165 800
L 40 200 165 800
XL 50 230 165 800
* Approximate measurements

Size Stem Dropper Seatpost Crank Handlebar
Height
S 35 170 165 800
M 40 200 165 800
L 40 200 165 800
XL 50 230 165 800
* Approximate measurements

Size Crank
Height
S 165
M 165
L 165
XL 165
* Approximate measurements

Size Handlebar
Height
S 800
M 800
L 800
XL 800
* Approximate measurements

Size Handlebar
Height
S 800
M 800
L 800
XL 800
* Approximate measurements

Size Handlebar
Height
S 800
M 800
L 800
XL 800
* Approximate measurements

Size Stem
Height
S 35
M 40
L 40
XL 50
* Approximate measurements

Size Dropper Seatpost
Height
S 170
M 200
L 200
XL 230
* Approximate measurements

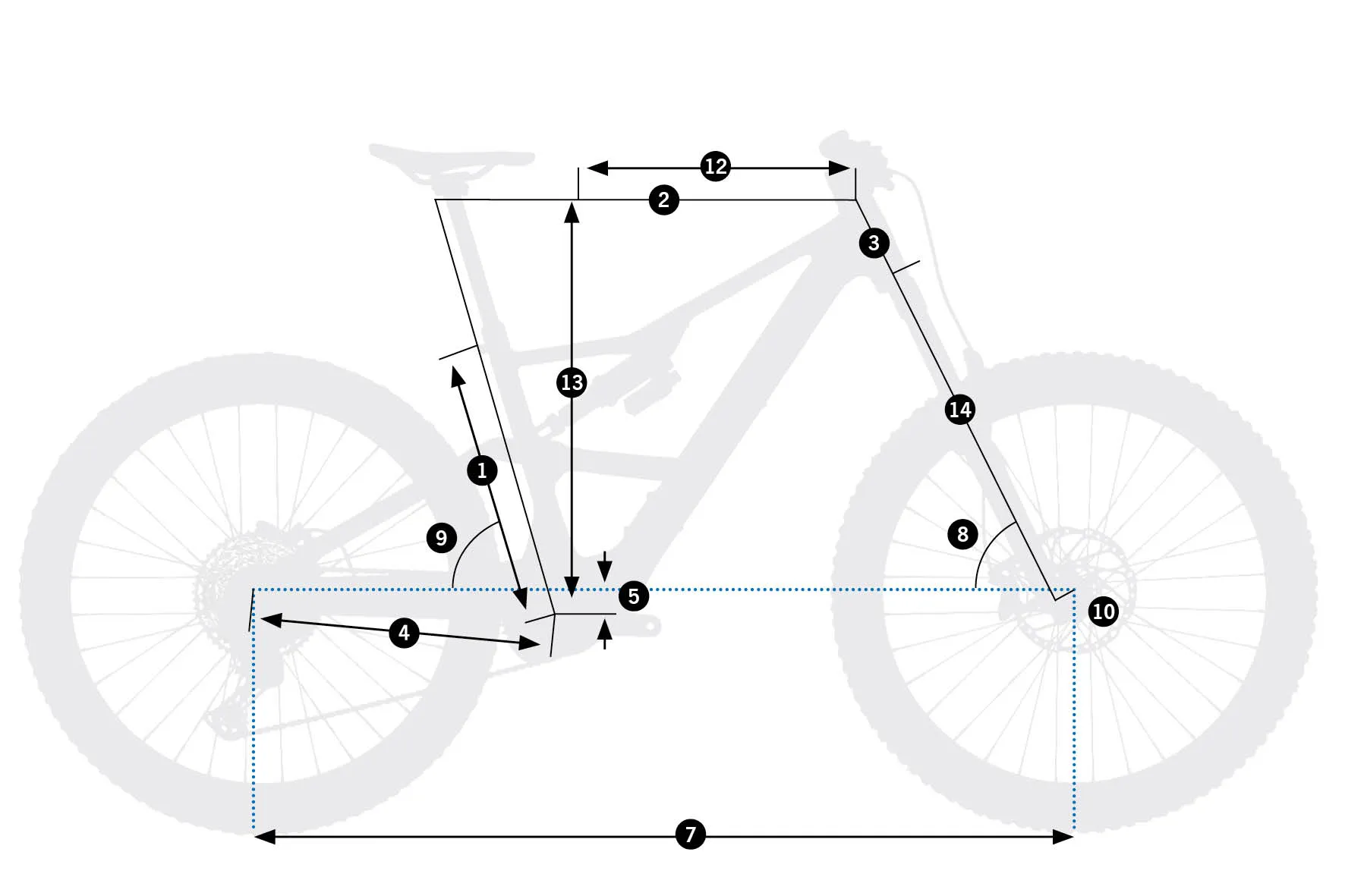

Geometry — Rise LT H20 20mph
